4. RecurDyn Issue¶

4.1. Search¶

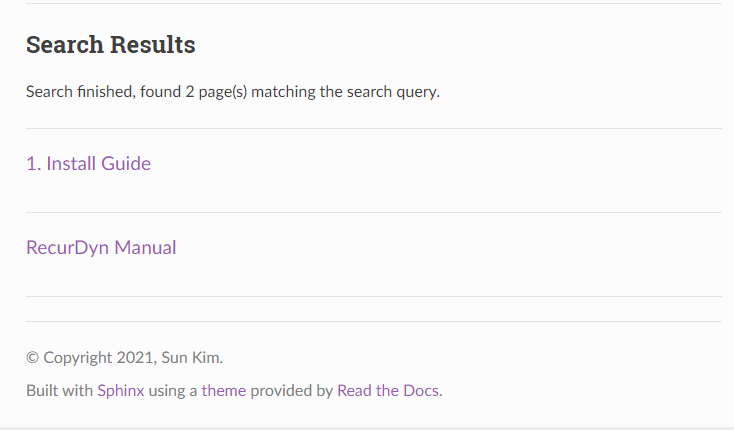

PC serach result

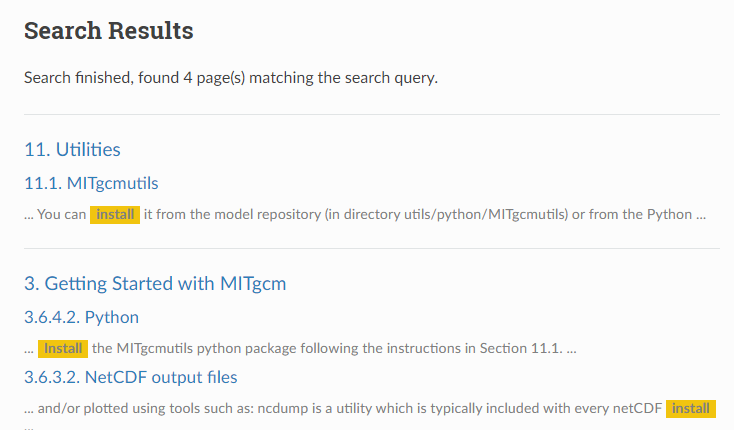

Readthedocs result

Not easy to implement PC search result as Readthedocs result

4.2. PDF¶

4.2.1. GIF support¶

edit conf.py

#https://stackoverflow.com/questions/45969711/sphinx-doc-how-do-i-render-an-animated-gif-when-building-for-html-but-a-png-wh
from sphinx.builders.html import StandaloneHTMLBuilder
StandaloneHTMLBuilder.supported_image_types = [
    'image/svg+xml',
    'image/gif',
    'image/png',
    'image/jpeg'
]

edit *.rst

change ???.gif to ???.png

convert *.gif to *.png ( it’s done when converting docx )

4.3. Image¶

4.3.1. Convert image to png¶

convert *.gif, *.jpg, *.bmp to *.png ( it’s done when converting docx )

4.4. Reference to Other document¶

edit conf.py

extensions = [
'sphinx.ext.autosectionlabel',
]
autosectionlabel_prefix_document = True

4.4.1. Options¶

autosectionlabel_prefix_document = True

:ref:`20_TSG/20_TSG:TSG Overview`
:ref:`custom title <20_TSG/20_TSG:TSG Overview>`

autosectionlabel_prefix_document = False

:ref:`TSG Overview`
:ref:`custom title <TSG Overview>`

RecurDyn uses: autosectionlabel_prefix_document = True

Example

Docx
Click `here <Working_Plane_Setup>`__.
Click `here <06_Body.docx#Use_Advanced_Graphical_Quality>`__.

RST
Click :ref:`here <03_home/03_home:Working Plane Setup>`
Click here :ref:`06_Body/06_Body:Use Advanced Graphical Quality>`.

4.5. Sphinx Build Wranings¶

4.5.1. WARNING: Inline emphasis start-string without end-string.¶

edit *.rst
=>
edit \*.rst

“*EIG_0001.RAN”, “*EIG_0002.RAN” and “*EIG_0003.RAN”.)
=>
“\*EIG_0001.RAN”, “\*EIG_0002.RAN” and “\*EIG_0003.RAN”.)

4.5.2. WARNING: Inline strong start-string without end-string.¶

the user can refer it in the directory (<install dir>/Help/DP_Study/**).
=>
the user can refer it in the directory (<install dir>/Help/DP_Study/\*\*).

4.5.3. WARNING: Error in “code-block” directive¶

.. code-block::
    change ???.gif to ???.png
=>
.. code-block::

    change ???.gif to ???.png

4.5.4. WARNING: Title level inconsistent¶

When converting 05_Analysis.docx, occurs level mismatch

Analysis
========

Dyn/Kin (Dynamic/Kinematic)
---------------------------

Property
^^^^^^^^

Parameter Page
''''''''''''''

Static
------

Property
~~~~~~~~

Parameter Page
^^^^^^^^^^^^^^

4.5.5. WARNING: Inline interpreted text or phrase reference start-string without end-string.¶

:math:`\zeta `
=>
:math:`\zeta`

:math:`{{f}_{n}}\equiv \sqrt{{{\lambda }'}}/2\pi `[Hz] (16-1)
=>
:math:`{{f}_{n}}\equiv \sqrt{{{\lambda }'}}/2\pi` [Hz] (16-1)

:math:`{{f}_{n}}\equiv \sqrt{{{\lambda }'}}/2\pi`[Hz] (16-1)
=>
:math:`{{f}_{n}}\equiv \sqrt{{{\lambda }'}}/2\pi` [Hz] (16-1)

where :math:`{{\lambda }_{r}}=-{{\omega }_{n}}\zeta`, |image8|
=>
where :math:`{{\lambda }_{r}}=-{{\omega }_{n}}\zeta` , |image8|

5. ProcessWord Issue¶

5.1. Equation Convert¶

Not supporting eq (1-1) (1-2) type. => fixed in ProcessWord.exe

<eq047> (16-2)
=>
.. :math:`equation`
    label: 05_ana_eq046

Not supporting eq (1-1) (1-2) type. => User need to fix

<eq047>[Hz] (16-1)
=>
.. :math:`equation Hz`
    label: 05_ana_eq047

<eq048>, |image001| (16-2)
=>
.. :math:`equation edit`
    label: 05_ana_eq048

5.2. MathType Convert¶

When converting equation to NULL, kill mathtype.exe process and rerun ProcessWord.exe 8
